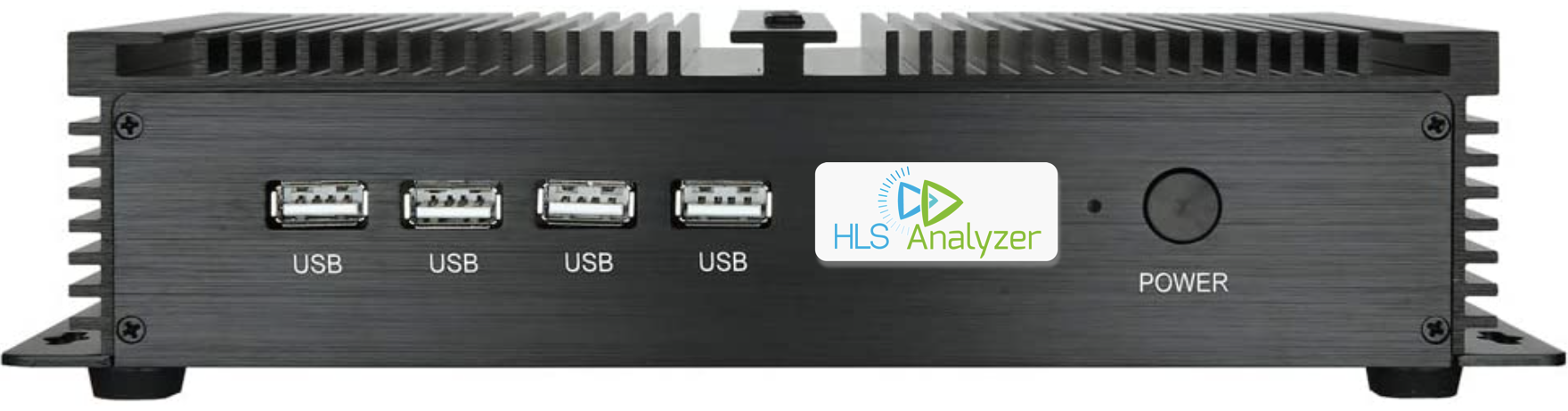

HLSA-1000 Monitoring Server

HLS and SCTE-35 Monitoring System

The HLSA-1000 brings the power of the HLS Analyzer’s monitoring system to a standalone, industrial-grade Linux PC. This server is ideal for monitoring streams within your local network, a lab environment with a closed network, or during the development of a streaming solution. Deploy the HLSA-1000 throughout your network to monitor streams at various stages of the delivery process. It can be easily integrated into a CI/CD pipeline using the available REST APIs, helping to fully validate your HLS streaming infrastructure with every development release. The server is fully self-contained and can perform all HLS and SCTE-35 monitoring functions with only a local internet connection (email alerts require full internet access).

Highlights

Monitor: up to 150 live or VOD playlists and segments to ensure correct delivery.
Recognize: a variety of SCTE-35 cue-point formats.
Publish: email alerts or HTTP POSTs for stream and SCTE-35 outages.
Utilize: a browser-based UI for configuring the analyzer.
Integrate: with a CI/CD pipeline using HTTP RESTful APIs.
Perform: over 25 continuous HLS conformance tests.
Configure: alarm thresholds for streaming and SCTE-35.
Enable: segment downloads for full load-testing of your CDN solution.

Specifications

Hardware	Fanless Industrial PC, Dual 10/100/1000M LAN Ports, 4 × COM RS232 Ports, HD Port, VGA, HDMI, 4 × USB 2.0/3.0 Ports, 2 × 802.11b/g/n Wireless
Operating System	Ubuntu Linux 24.04 LTS
Dimensions (LxWxH)	8.35 x 5.91 x 2.01 inches
Configurations	From 25 to 150 media playlists with SCTE-35 and outage alerts

* Specifications are subject to change without notice

Take the Next Step

Ready to enhance your streaming infrastructure with the HLSA-1000? Our solutions start at $2,000 for a system with a perpetual monitoring license, including hardware and one year of support.
